MagicDraw/Cameo: The Allocate relationship is available in all SysML diagram types under the Common sidebar menu group (but you can only use it to make allocations between elements that both appear in a given diagram).

Icon class
icon_class
far fa-sticky-note
icon_class_computed
far fa-sticky-note
Note kind
FEATURE
TIP
TOOL
SysMLv1.x keywords
Allocate
«allocate»

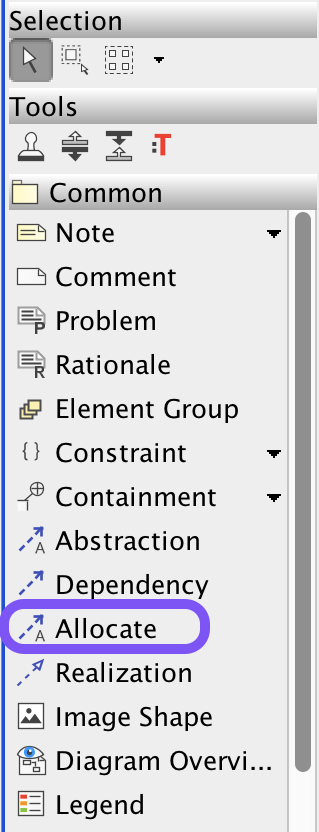

Click on the image to view it full size
The Allocate relationship is available in all SysML diagram types under the Common sidebar menu group (but you can only use it to make allocations between elements that may appear in a given diagram).
If you can't use Allocate via a menu item (or smart manipulator) this will get you un-stuck:
MagicDraw/Cameo: You can allocate an Action to any NamedElement in the model via its specification box under the Allocations section by dragging and dropping an element (such as a part Property) from the model browser onto the Allocate To field.
