ARCHIVAL (2007): This content is now considered historical only!

Figure 01: Convention and notation for Class/Interface pairs and associated wrapper Component.

Gallery
Tutorial
Section
Click on the image to view it full size

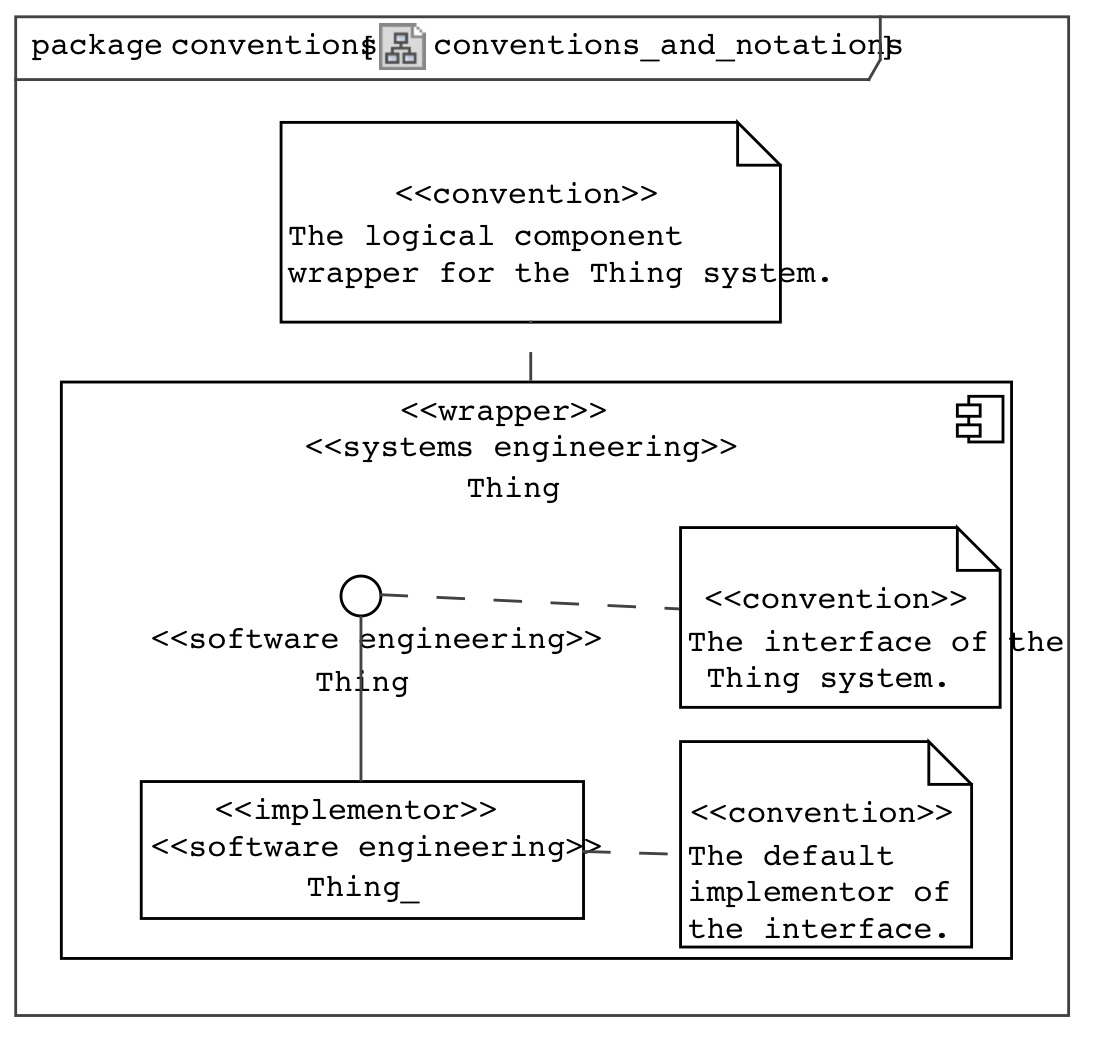

Figure 1: Convention and notation for Class/Interface pairs and associated «wrapper». The convention is employed throughout the Bragg [ARCHIVAL] Instrument ModelServer software architecture, and can likewise be applied to systems engineering blocks.
