Webel vs SysPhS-1.1: Suggest SysPhSLibrary should support Heat and FlowingHeat as conserved quantities with HeatFlowElement interface block and HeatFlowRate value type.

Icon class
icon_class
far fa-sticky-note
icon_class_computed
far fa-sticky-note
Note kind
PROPOSAL
Specification keywords
SysPhS-1.1
SysMLv1.x keywords
Block
InterfaceBlock
ValueType
SysPhS Keywords
ConservedQuantityKind
Keywords
Click on the image to view it full size

Note that the suggested naming follows the SysPhS-1.1 naming pattern, even though for heat this is slightly confusing because heat always implies a flow/transfer:

Wikipedia: 'In thermodynamics, heat is energy in transfer to or from a thermodynamic system, by mechanisms other than thermodynamic work or transfer of matter.'
Relates to
Overview of two SysPhS-style physical interaction Port types

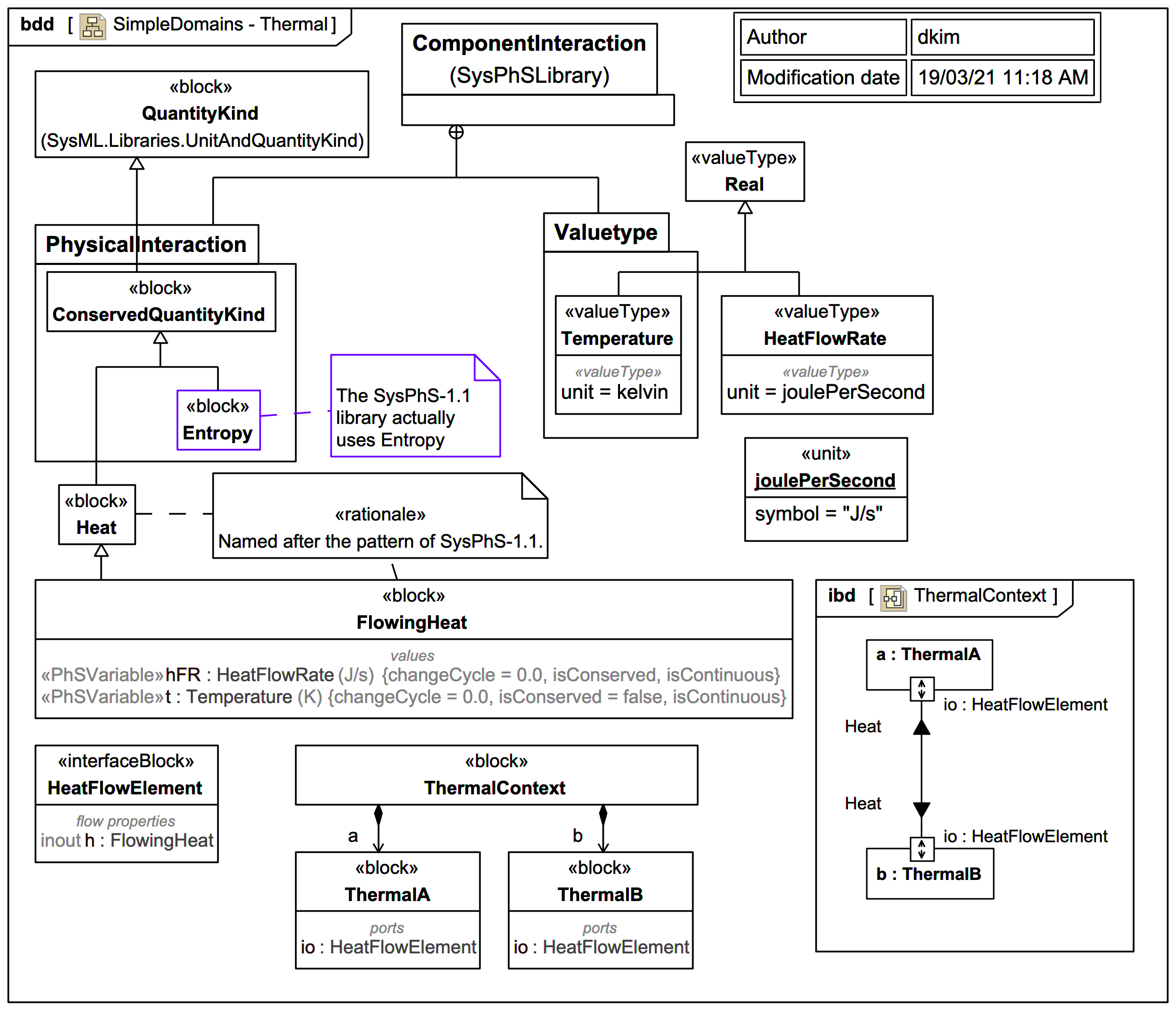

SimpleDomains - Thermal
Related notes
[PROPOSAL] Webel vs SysPhS-1.1: Suggest SysPhSLibrary should support Mass and FlowingMass as conserved quantities (for compressible fluids) with MassFlowElement interface block and MassFlowRate value type.
Related notes (backlinks)
Related snippets (extracts)
 In thermodynamics, heat is energy in transfer to or from a thermodynamic system, by mechanisms other than thermodynamic work or transfer of matter.
Visit also
SysPhS-1.1
Visit also (backlinks)
External links
https://issues.omg.org/browse/SYSPHS12-31
