MagicDraw/Cameo: Offers a customised Views and Viewpoints Diagram type with dedicated menus and some Viewpoint types.

Icon class
icon_class
far fa-sticky-note
icon_class_computed
far fa-sticky-note
Note kind
CAPABILITY
TOOL
SysMLv1.x keywords
View
Viewpoint
Expose
Keywords
Click on the image to view it full size
MagicDraw VnV diagram
Relates to
Figure D.27 - Establishing a Performance View of the User Model (Package Diagram)

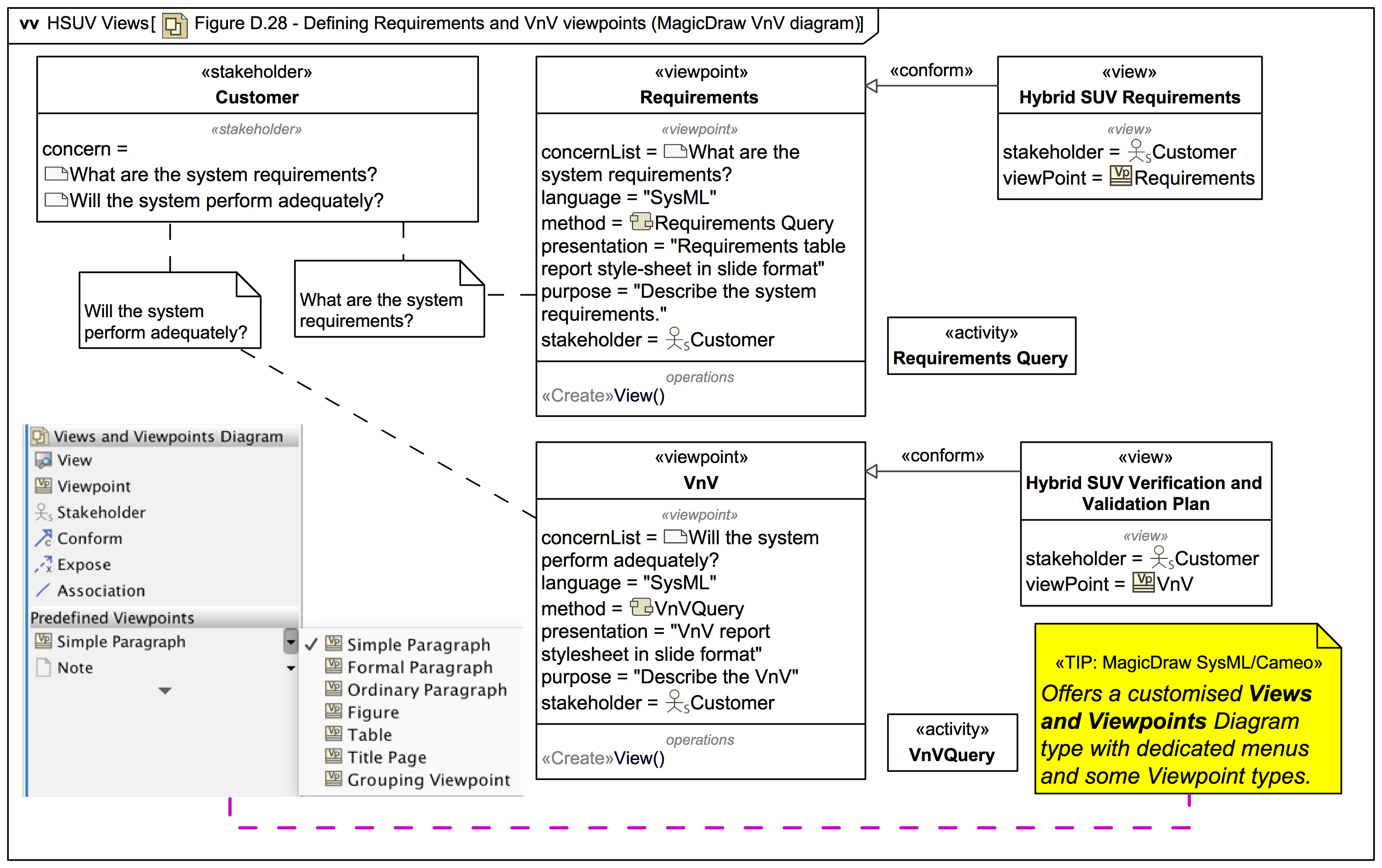

Figure D.28 - Defining Requirements and VnV viewpoints (Package Diagram)
Figure D.29 - Requirements and VnV views exposing elements from the model (Package Diagram)
View and Viewpoint example with «Create» method
Related notes
[TIP, TOOL] MagicDraw/Cameo: To access the Expose relationship use a View and Viewpoints Diagram (non-normative) or create a Dependency in a Package Diagram then use: Refactor > Convert To > Expose
