Figure 9-12: Plumbing association block

Gallery
Tutorial
TRAIL: The SysML-1.6 Hybrid SUV sample and specification diagrams in MagicDraw/Cameo (with annotations) [UNDERGOING UPDATE to SysML1.7]
Section
Section: SysML-1.6 specification diagrams: 09 Ports and Flows
SysML keywords
SysML specification figure
AssociationBlock
Slide kind
SysML Block Definition Diagram (BDD)
Click on the image to view it full size

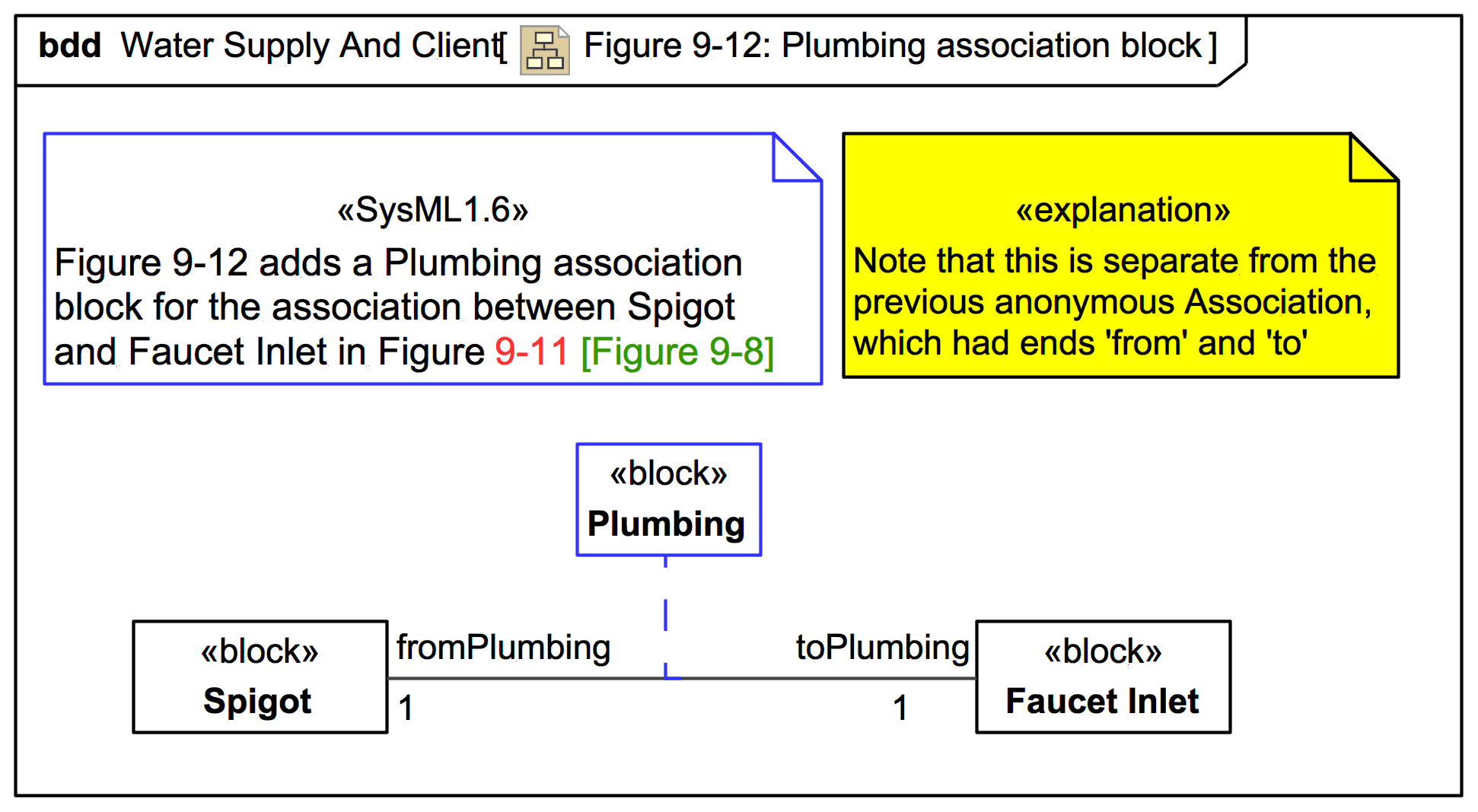

SysML-1-6: 'Figure 9-12 adds a Plumbing association block for the association between Spigot and Faucet Inlet in Figure 9-11.'
SysML-1.6: reference to 'association between Spigot and Faucet Inlet in Figure 9-11' should say 'Figure 9-8'
Note that the AssociationBlock Plumbing is separate from the anonymous Association from Figure 9-8, which had ends 'from' and 'to'.
Up next
Figure 9-13: Internal structure of Plumbing association block
Notes
[ISSUE] SysML-1.6: reference to 'association between Spigot and Faucet Inlet in Figure 9-11' should say 'Figure 9-8'
Snippets (quotes/extracts)
  [SysML-1.6] Figure 9-12 adds a Plumbing association block for the association between Spigot and Faucet Inlet in Figure 9-11.
