MagicDraw/Cameo: You can control how or whether applied Sterotypes are displayed on most Element symbols using the 'Show Stereotypes' display option (and in some cases this affects how the entire symbol is displayed).

Icon class
icon_class
far fa-sticky-note
icon_class_computed
far fa-sticky-note
Note kind
DISPLAY
FEATURE
SETTINGS
STYLE
TIP
TOOL
Policy level
INFORMATIVE
UML keywords
Diagram
Element
symbol
Stereotype
icon
Keywords

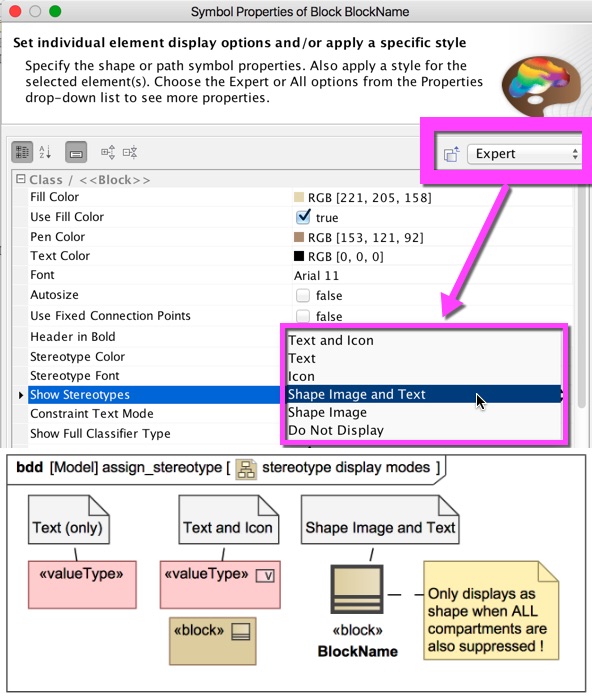

Click on the image to view it full size
This diagram shows vendor-specific tool colours for symbols but this is not Webel Best Practice
Relates to
Related notes
[CAPABILITY, FEATURE, TIP, TOOL] In MagicDraw/Cameo an assigned stereotype of a Classifier that types an instance-like element (such as a part Property) "shines through" unless it has an instance-level stereotype assigned. This is sometimes called a "secondary stereotype".
[CAVEAT, DISPLAY, STYLE, TOOL] MagicDraw/Cameo: the coloured stereotype icons for some kinds of elements can't be removed from all diagrams, tables, or matrix views
[FEATURE, TIP, TOOL]{INFORMATIVE} MagicDraw/Cameo: You can assign or un-assign one or more Stereotypes to one or more selected Elements at once using the 'Stereotype' context menu item
[FEATURE, TIP, TOOL]{INFORMATIVE} MagicDraw/Cameo: You can drag-n-drop most applicable Stereotype types from the model browser onto an Element's symbol in a Diagram to apply it to that Element (does not work in all cases).
