MagicDraw SysML: [v2022xGolden,v2022xRefresh1]: ISSUE: Automatic assignment of the Type of the 'result' of a ReadStructuralFeatureAction not working with drag & drop.

This page identifies a possible issue, inconsistency, concern, error, or bug!
One of the ways Webel IT Australia helps promote tools, technologies, and languages is by donating a lot of time identifying, tracking, and reporting potential issues, in order to help vendors and developers improve the tools and technologies. In some cases, we also offer workarounds and advice for users. All issues tracked on our public site are offered most constructively and with sincerest gratitude to the tool vendors and technology developers.
DISCLAIMER: Vendors do not officially endorse issue analysis by Webel IT Australia.
Icon class
far fa-sticky-note
far fa-sticky-note
Note kind
Policy level
UML keywords
Click on the image to view it full size
Dr Darren says:
Reasonably certain this worked on some previous versions ok. Has been reported to support.

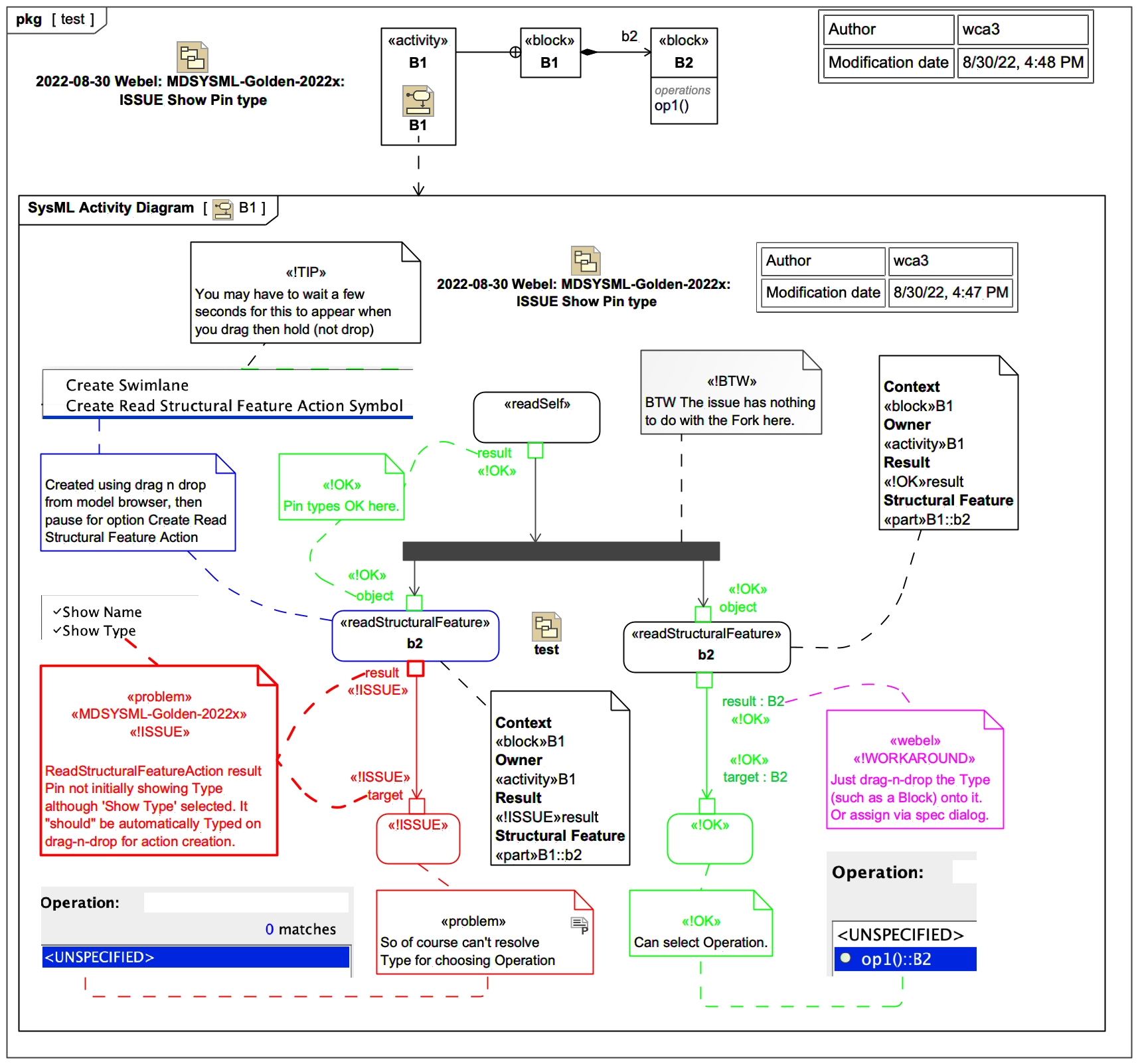

WORKAROUND: Drag & Drop the Type (such as a Block) from the model browser onto the typeless Pin symbol.
You can use Go To > Type from the Property/Feature in the containment browser to select the Type, then drag it onto the Pin. Not so convenient. Even with this it is very time consuming (indeed annoying) and really breaks the flow of Activity modelling, so automated would be better, as works for ReadSelfAction and many other cases.
