fUML1.4: Cameo Simulation Toolkit: LIMITATION: CreateObjectAction is not allowed to instantiate a UML DataType or a SysMLValueType, only a Class as the CreateObjectAction::classifier! WORKAROUND: Use a ValueSpecificationAction instead with an instance.

Icon class
icon_class
far fa-sticky-note
icon_class_computed
far fa-sticky-note
Note kind
GOTCHA
LIMITATION
WARNING
Policy level
INFORMATIVE
Specification keywords
fUML-1.3
fUML-1.4
UML keywords
Class
CreateObjectAction
CreateObjectAction::classifier
DataType
AddStructuralFeatureValueAction
ValueSpecificationAction
SysMLv1.x keywords
ValueType
Keywords
Click on the image to view it full size

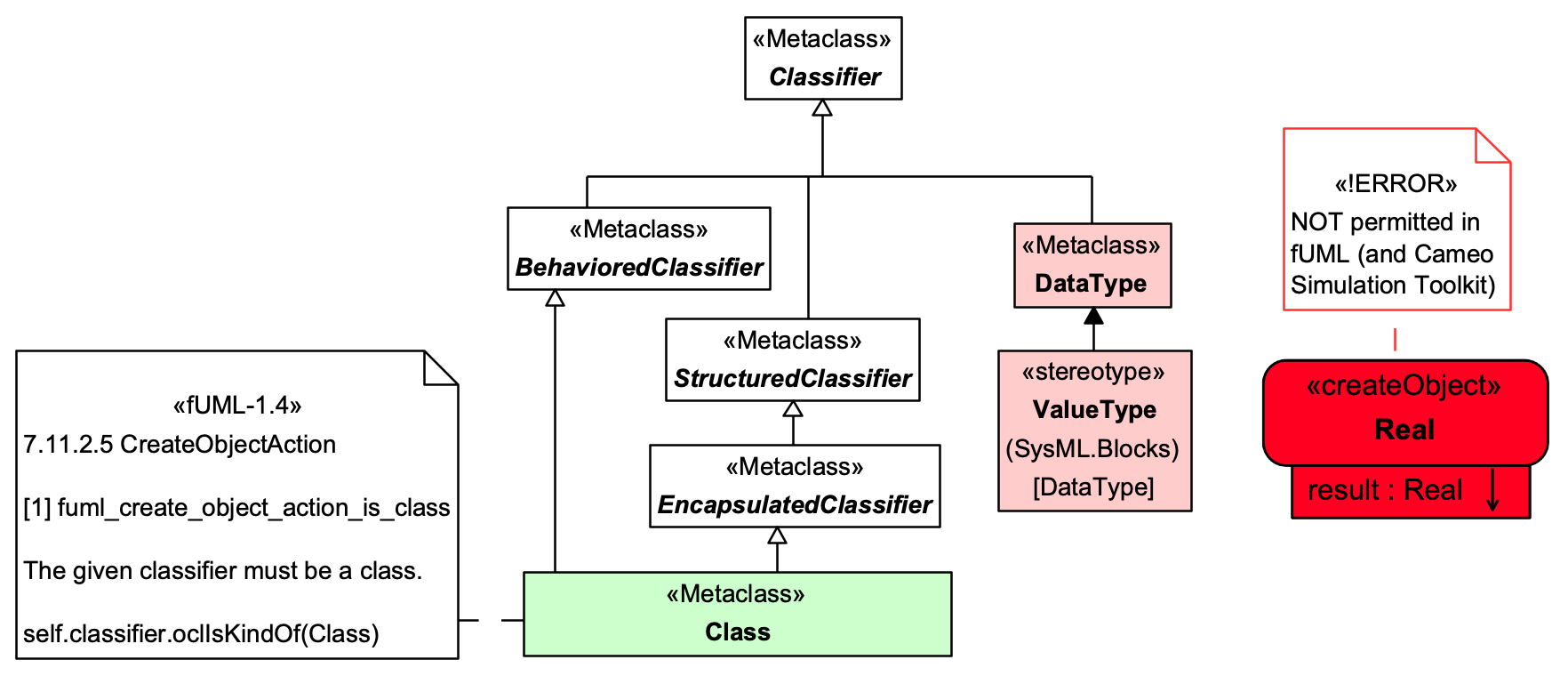

In fUML-1.3/1.4 - and Magic Model Analyst® (Cameo Simulation Toolkit®)) - CreateObjectAction is not allowed to instantiate a UML DataType or a SysMLValueType, only a Class as the < code>CreateObjectAction::classifier:
fUML-1.4: 'fUML1.4: 7.11.2.5: CreateObjectAction [1] fuml_create_object_action_is_class: The given classifier must be a class. self.classifier.oclIsKindOf(Class)'

But there's an easy workaround in Magic Model Analyst® (Cameo Simulation Toolkit®). Just create an "empty" instance of the desired ValueType then drag it onto a ValueSpecificationAction. You can the populate it as desired using AddStructuralFeatureValueAction just as you would for any Class/Block object.

Relates to
Related notes
Related notes (backlinks)
Related snippets (extracts)
  [fUML-1.4] fUML1.4: 7.11.2.5: CreateObjectAction [1] fuml_create_object_action_is_class: The given classifier must be a class. self.classifier.oclIsKindOf(Class)
  [UML-2.5.1] A CreateObjectAction is an Action that creates an instance of the specified Classifier.
  [UML-2.5.1] CreateObjectAction::classifier : Classifier [1..1] The Classifier to be instantiated.
