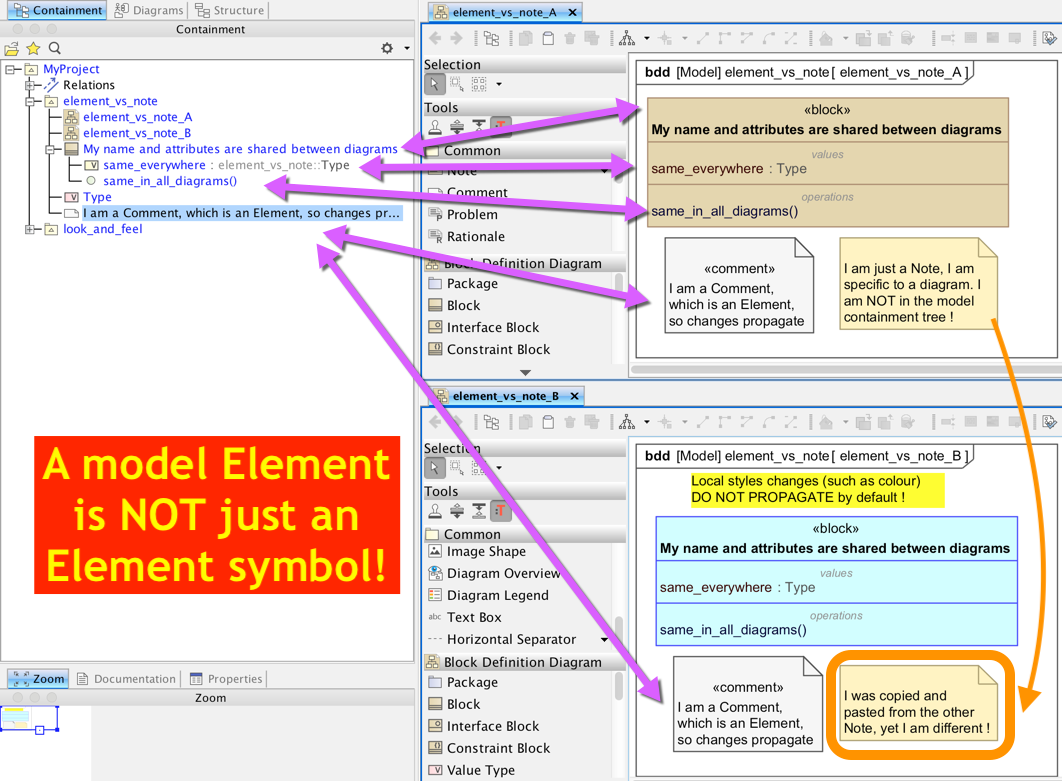

Icon class icon_class far fa-sticky-note icon_class_computed far fa-sticky-note Note kind ASSERTION DISPLAY TOOL Policy level STRICT Specification keywords SysML-1.6 UML-2.5.1 UML keywords Diagram Element symbol Keywords Webel Best Practice MagicDraw SysML Cameo Systems Modeler Click on the image to view it full size This is perhaps the very first thing you should learn when using a UML or SysML tool! Relates to Related notes Related notes (backlinks) [FEATURE, TIP, TOOL]{INFORMATIVE} MagicDraw/Cameo: You can drag-n-drop most applicable Stereotype types from the model browser onto an Element's symbol in a Diagram to apply it to that Element (does not work in all cases). [FEATURE, TIP, TOOL]{INFORMATIVE} MagicDraw/Cameo: You and can drag-n-drop the icon for most Diagram types from the model browser onto a symbol in a Diagram to make it the default hyperlink for that Element; clicking on that Element symbol will then open up that Diagram. [DISPLAY, FEATURE, SETTINGS, TOOL]{INFORMATIVE} MagicDraw/Cameo: You and can choose which Features, element properties, or tagged values of Stereotypes to show on most symbol compartment types [ASSERTION, DISPLAY, SETTINGS, STYLE, TOOL]{STRICT} ALL Model-Based Engineering: Just because you can't see a Feature or some other aspect of a SysML (or UML) Element in a tool on a symbol does NOT mean it does not exist in the underlying model (repository)! The model is not just what is DISPLAYED! Related snippets (extracts) Visit also Visit also (backlinks) Flags Book traversal links for Rule #1: A UML or SysML Element in a tool is NOT just an Element symbol in a diagram! A Note is not an Element (compare with a Comment). Previous Up Next
