IBD of a SimpleOpticalTelescope in context with some relationships

This is not yet a port-based light flow model, it merely shows some of the existing relationships that have been elicited so far, with some Connectors typed by existing Associations.

Click on the image to view it full size

The following figure for a Keplerian refractor serves as a reference for a typical simple optical telescope:

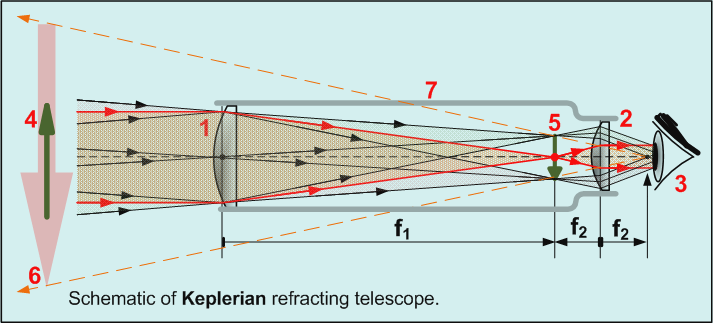

Wikipedia: 'Schematic of a Keplerian refracting telescope. The arrow at (4) is a (notional) representation of the original image; the arrow at (5) is the inverted image at the focal plane; the arrow at (6) is the virtual image that forms in the viewer's visual sphere'

Image author: Szőcs Tamás; Copyright licence: Creative Commons CC BY-SA 3.0.

The context block has three parts: a :DistantObject, a :SimpleOpticalTelescope, and an :Eye.

A SysML BindingConnector is used to assert that the :DistantObject is the same as the inherited internal reference object:DistantObject of the :OpticalTelescope.

The Connector :Observes from :OpticalTelescope to the external :DistantObject is typed by a named Association, and because of the BindingConnector this is in fact equivalent to connecting to the internal reference object:DistantObject.

The objective «collects» light from the ^object and «produces» the ^image.

The Connector from ^object to ^image is inherited.

An anonymous Association types the Connector from ^focalPlane to ^focalPoint, and these Properties are each bound using BindingConnectors to their equivalents within the objective since they are constrained to be the same in the context of SimpleOpticalTelescope. This arrangement may not be true of all optical telescopes (such as reflectors with secondary mirrors), so these BindingConnectors are owned by the specific SimpleOpticalTelescope.

The eyepiece «magnifies» the ^image and «produces» the ^viewedImage.

And there is a Connector :observes from the :Eye to the ^viewedImage.

So although this IBD does not represent the flow of light through the optical system in a signal-processing manner, it does very nicely represent the relationships between participants of the optical system.

Up next

SimpleOpticalTelescope light flow model: staging BDD and context IBD

Notes

Snippets (quotes/extracts)

The basic scheme is that the primary light-gathering element, the objective (the convex lens or concave mirror used to gather the incoming light), focuses that light from the distant object to a focal plane where it forms a real image.

This image may be ... viewed through an eyepiece, which acts like a magnifying glass. The eye then sees a ... magnified virtual image of the object.
