ARCHIVAL (2007): This content is now considered historical only!

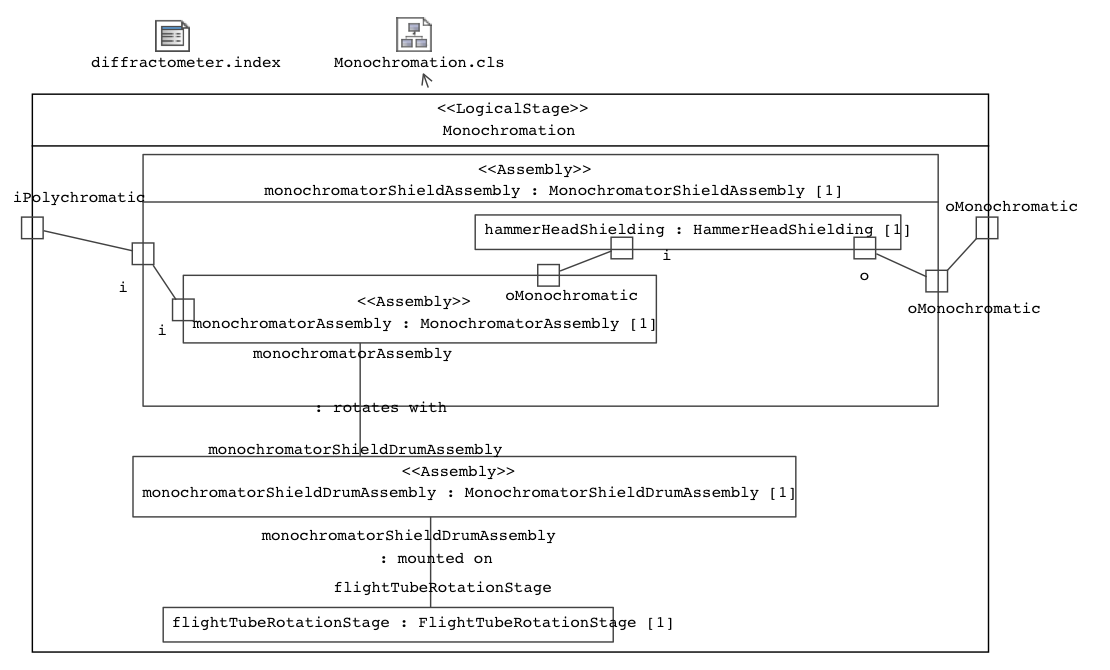

Figure 10: Model: UML2 composite structure diagram for the monochromation beam stage of the neutron diffractometers of the OPAL NBIs.

Gallery
Tutorial
Section
This page shows (for purposes of historical reference only) an OBSOLETE early attempt at re-appropriating Unified Modeling Language (UML®) for port-based systems engineering. Please see now instead for latest Systems Modeling Language (SysML®) !
Click on the image to view it full size in a viewer
Shows beam-centric organisation of the system dictated by neutron flow ports (as opposed to assembly-centric organisation). The monochromator shield assembly is screwed to a concrete floor, the monochromator assembly (including goniometer) rotates with a monochromator shield drum assembly (which is partly inside and partly outside of the fixed monochromator shield assembly), and the beam passes through both “fixed” and “moveable” parts. The use of flowports helps to organise the model according to the logic of the beam. Note the difficulty in reflecting the horizontal beam path concisely.
Note also the lack of direction on the typed 'rotates with' and 'is mounted inside' connections compared with the "directed" association names.
Note that this notation precedes the introduction of the early Systems Modeling Language (SysML®) "FlowPort" (which is now achieved since SysML1.4 using FlowProperties on Block).
