Required/Provided Interface notation: Ball-and-Socket "dependency wiring" [tool specific]

Gallery
Tutorial
TRAIL: Webel's ultimate guide to Systems Modeling Language (v1) with MagicDraw/Cameo
Section
01:02: UML 101 for model-based systems engineering with SysML
Topic level
BASIC
UML keywords
Class
BehavioredClassifier
Interface
required Interface
provided Interface
Usage
InterfaceRealization
BehavioredClassifier::interfaceRealization
ball-and-socket
Keywords
Slide kind
UML Class Diagram

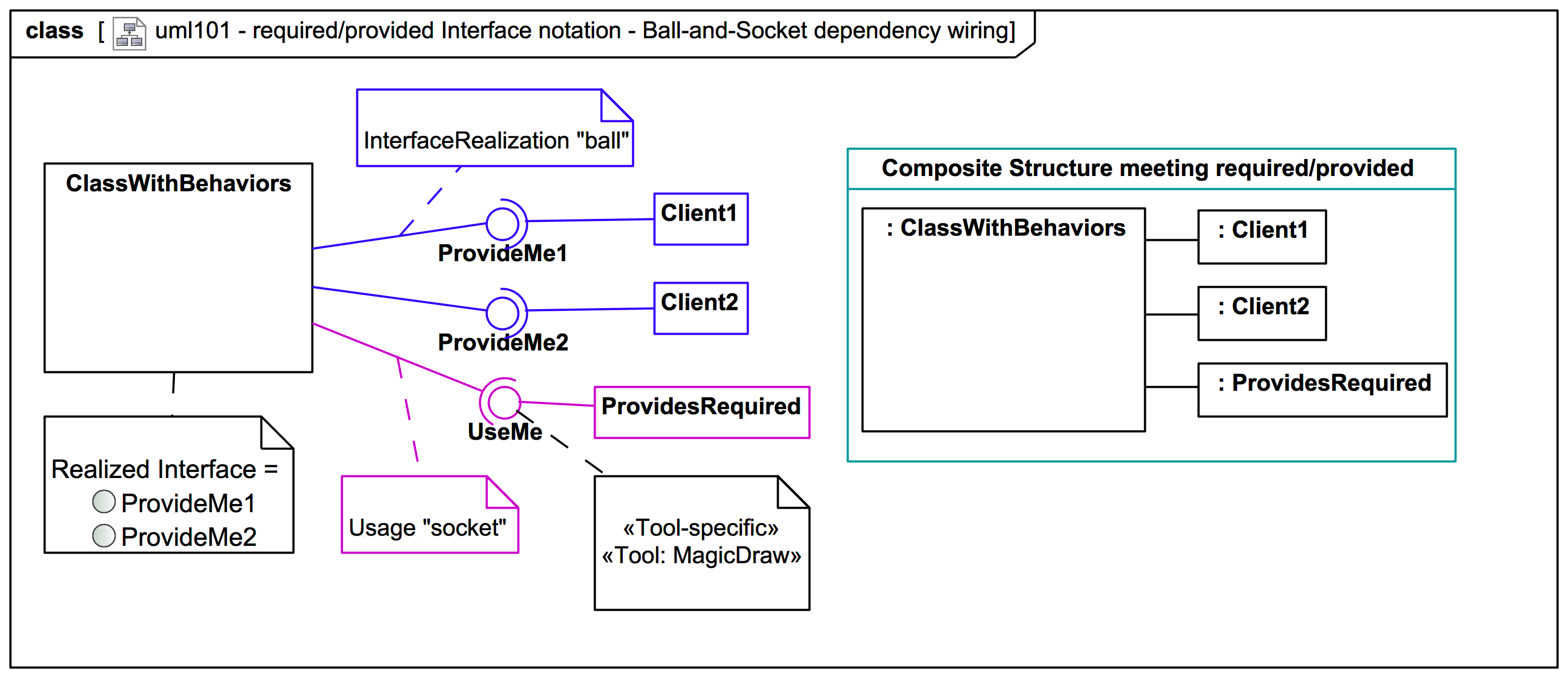

MagicDraw: Has an additional tool-specific notation and feature sometimes called "ball-and-socket dependency wiring" for use with provided and required Interfaces in Class Diagrams and some other definition-level diagrams.
Click on the image to view it full size
Webel Best Practice: In general, the SysML DirectedFeature approach is more powerful and the notation is cleaner than UML provided/required Interfaces. Prefer SysML DirectedFeatures unless you have a really good reason to use Interfaces!
Up next
UML2 simplified key metaclass hierarchy (excluding relationships) - ADVANCED REFERENCE ONLY
Notes
[FEATURE, TOOL]{OPTION} MagicDraw: Has an additional tool-specific notation and feature sometimes called "ball-and-socket dependency wiring" for use with provided and required Interfaces in Class Diagrams and some other definition-level diagrams.
[TIP]{STRONG} In general, the SysML DirectedFeature approach is more powerful and the notation is cleaner than UML provided/required Interfaces. Prefer SysML DirectedFeatures unless you have a really good reason to use Interfaces!
Snippets (quotes/extracts)
  [UML-2.5.1] A given BehavioredClassifier may implement more than one Interface and that an Interface may be implemented by a number of different BehavioredClassifiers.
  [UML-2.5.1] The set of Interfaces realized by a BehavioredClassifier are its provided Interfaces, which represent the services and obligations that instances of that BehavioredClassifier offer to their clients.
  [UML-2.5.1] Interfaces may also be used to specify required Interfaces, which are specified by a Usage dependency between the BehavioredClassifier and the corresponding Interfaces.
  [UML-2.5.1] Required Interfaces specify services that a BehavioredClassifier needs in order to perform its function and fulfill its own obligations to its clients.
