UML/SysML: Cameo Simulation Toolkit 19SP3: A parent Activity with a DecisionNode that uses a Activity as a decisionInput Behavior terminates immediately after the decisionInput terminates (but OpaqueBehavior works)

This page identifies a possible issue, inconsistency, concern, error, or bug!
One of the ways Webel IT Australia helps promote tools, technologies, and languages is by donating a lot of time identifying, tracking, and reporting potential issues, in order to help vendors and developers improve the tools and technologies. In some cases, we also offer workarounds and advice for users. All issues tracked on our public site are offered most constructively and with sincerest gratitude to the tool vendors and technology developers.
DISCLAIMER: Vendors do not officially endorse issue analysis by Webel IT Australia.
Icon class
icon_class
far fa-sticky-note
icon_class_computed
far fa-sticky-note
Note kind
Policy level
Specification keywords
UML keywords
Keywords

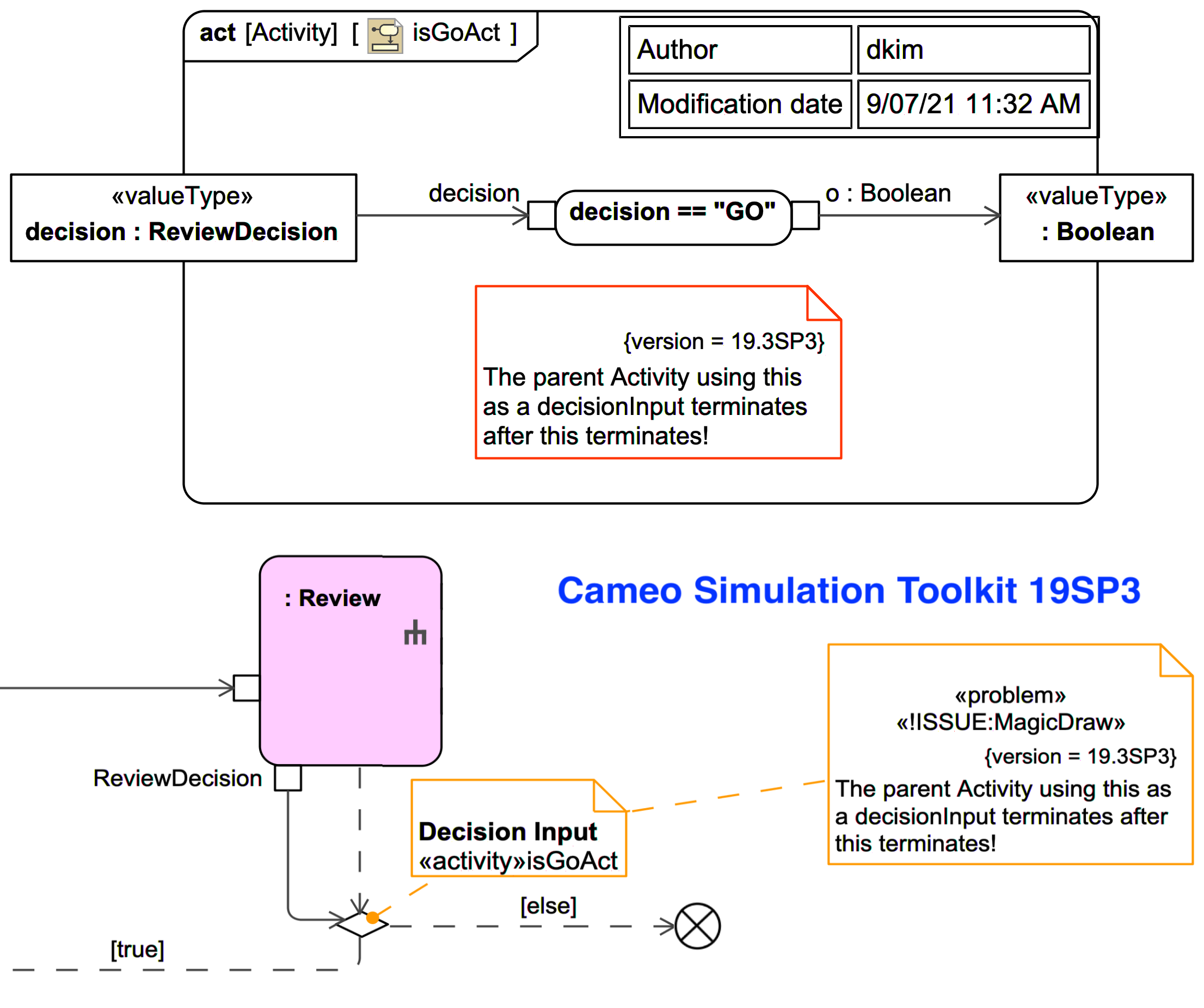

Click on the image to view it full size
The problem only afflicts an Activity used as decisionInput, an OpaqueExpression works fine; in the example above, the body can be simply decision == "GO", where GO is an EnumerationLiteral (note that it is "QUOTED").
