UML/SysML: MagicDraw/Cameo 19SP3: GOTCHA/TIP: An Instance Table will not display a row for instances typed by an abstract Class/Block (although one can show such instances as InstanceSpecification symbols on a Class Diagram or Block Definition Diagram)

Icon class
icon_class
far fa-sticky-note
icon_class_computed
far fa-sticky-note
Note kind
GOTCHA
TIP
TOOL
Policy level
INFORMATIVE
Specification keywords
SysML-1.6
SysML-1.7
UML-2.5.1
UML keywords
Classifier::isAbstract
Keywords
Click on the image to view it full size

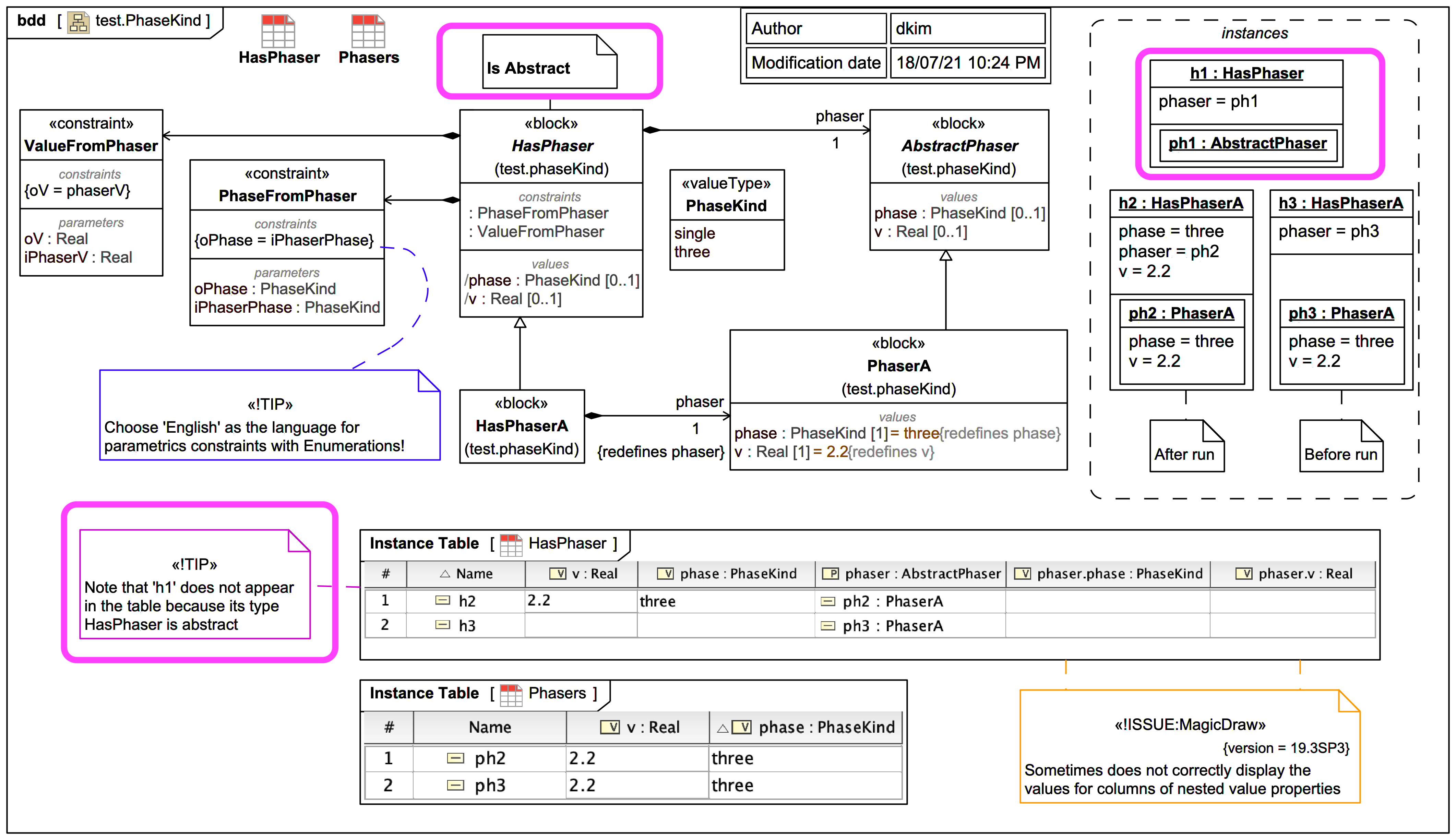

This might be consistent with the idea of an abstract Class/Block, but it can make it hard to progressively analyse and debug/test hierarchies with correct abstractions.
