Webel: SysML: MagicDraw/Cameo: Strongly recommend that you set the Perspective to 'Full Featured' and 'Expert' at the very beginning at the start of every new project

Icon class
icon_class
far fa-sticky-note
icon_class_computed
far fa-sticky-note
Note kind
ASSERTION
DISPLAY
FEATURE
SETTINGS
TIP
TOOL
Policy level
STRONG
Specification keywords
SysML-1.6
SysML-1.7
SysMLv2
Keywords

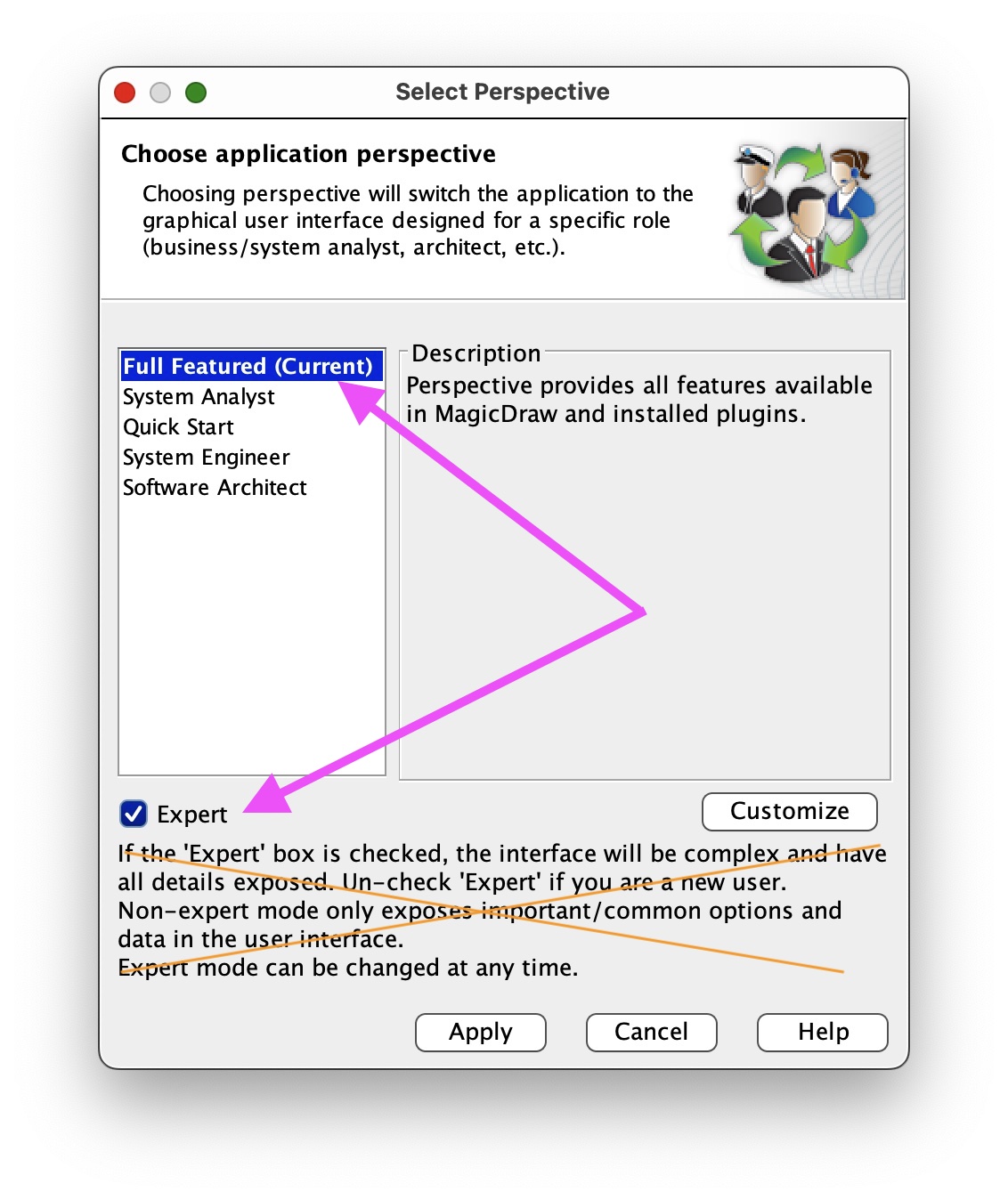

Click on the image to view it full size
When learning SysML the Webel way, it is strongly recommended that under Options > Perspective you set it to 'Full Featured' and 'Expert' right at the beginning of every project, even if you are a beginner! Learn to use the search capabilities to find elements. Otherwise, some crucial elements you'll need for basic systems engineering and to learn the SysML language are not visible.
Visit also: Webel: MagicDraw/Cameo: Set EVERY element properties & symbol properties filter to 'All' (yes, not just 'Expert', to 'All', even if you are a "novice" on your first project) in EVERY dialog and every project option setting. Use the search filters!
Visit also: Cameo/MagicDraw: The Classifier specification setting 'isAbstract' is (for reasons that beggar belief or engineering reason) not by default visible in the Element specification dialog. Enable expertise level 'All' (and for always everwhere).
