Webel: SysML: SE: «blackbox»: The custom Stereotype keyword «scenario» indicates a Behavior (Interaction as Sequence Diagram or Activity) that Refines a top-level UseCase within the 'problem' zone.

Icon class
icon_class
far fa-sticky-note
icon_class_computed
far fa-sticky-note
Note kind
CONVENTION
MODELLING
NAMING
TIP
Policy level
RECOMMENDED
UML keywords
Activity
Use Case scenario
UseCase::subject
SysMLv1.x keywords
SysML Activity Diagram
Refine
Keywords
Click on the image to view it full size

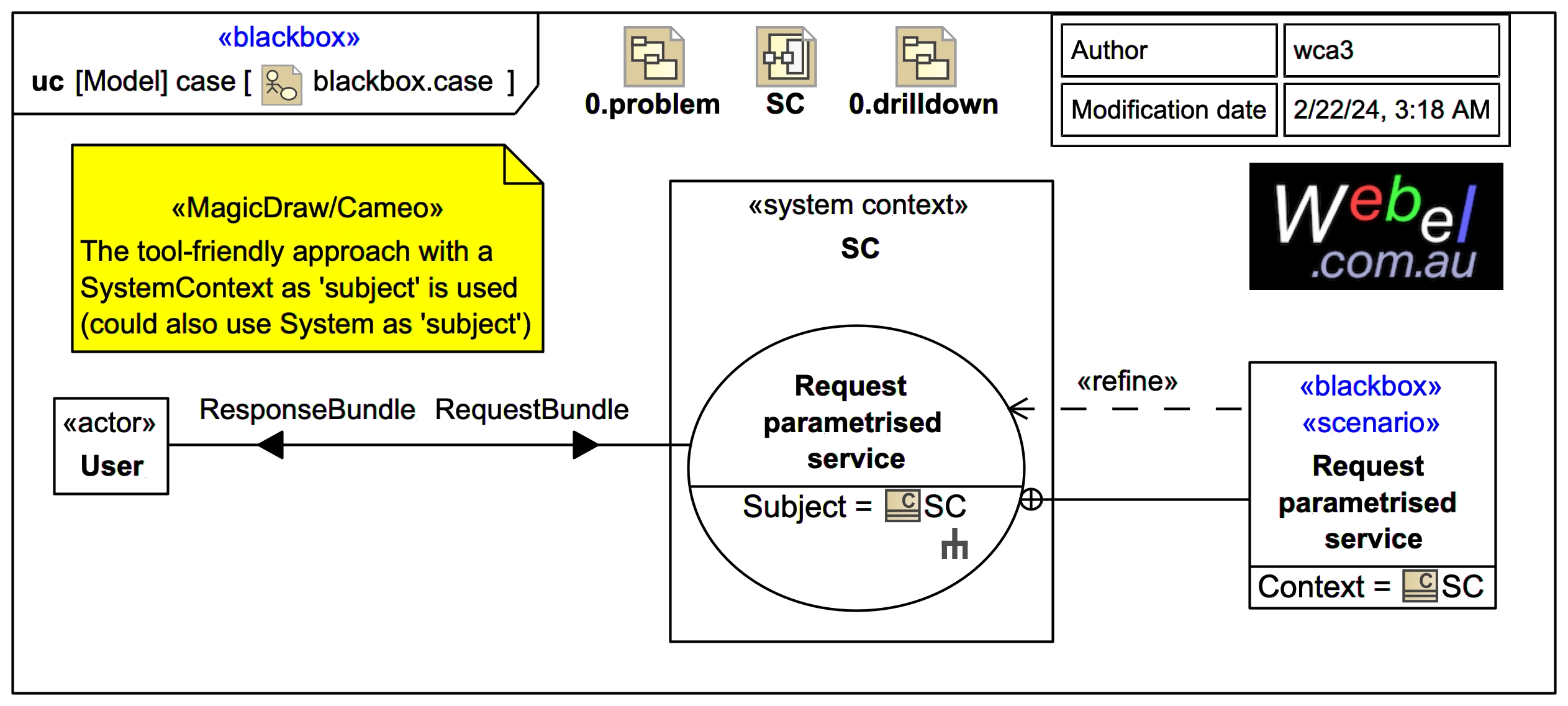

In the Webel recipe for pragmatic SE with SysML the custom Stereotype keyword «scenario» indicates a Behavior (Interaction as Sequence Diagram or Activity) that Refines a top-level UseCase (which are both considered «blackbox» and are within the 'problem' zone).

Note the use an explicit Refine relationship rather than just relying on ownership (containment) or derived relationship tool navigation.

Visit also:
[STUB] TRAIL: Webel's ultimate guide to simplified yet adequate pragmatic systems engineering with functional analysis in SysMLv1 for smaller scale MBSE projects in the MagicDraw/Cameo/CATIA Magic tools
The Webel recipe for pragramatic SE with SysML adopts the MagicDraw/Cameo tool friendly approach of using a SystemContext as 'subject' of top-level UseCases (although using a System as 'subject' can also be used).
Webel Best Practice: Webel: SysML: SE: Stereotype keyword convention: BY DEFINITION HERE «blackbox» and «whitebox» refer specifically to the 'problem' zone and NEVER the 'solution' zone (as opposed to more general uses of the terms 'black-box' and 'white-box').
Relates to
[STUB] TRAIL: Webel's ultimate guide to simplified yet adequate pragmatic systems engineering with functional analysis in SysMLv1 for smaller scale MBSE projects in the MagicDraw/Cameo/CATIA Magic tools
Webel SE: pragmatic tool-friendly functional analysis: 2-level drill-down from a single Use Case via a «scenario» Activity with allocation to «logical» subsystems first then crossing to the «design» Blocks zone.
Related notes
[EXPLANATION, GOTCHA, MODELLING]{INFORMATIVE} HOWTO "cheat" with two-level white-boxing and tracking stereotypes because you just don't want that darn "extra" logical subsystem (conceptual subsystem) Block the systems engineers reckon you are supposed to use (and why it's easier to actually use one)
[CAPABILITY, FEATURE, TOOL] Magicdraw/Cameo has powerful query view tables, maps, and dependency matrix diagrams!
[CONVENTION, FEATURE, MODELLING, OPTION, TIP, TOOL]{INFORMATIVE} SysMLv1: MagicDraw/Cameo: Having a SystemContext as the 'subject' of each main UseCase plays nicely with the feature for automated creation of usage-level allocation swimlanes in SysML Activity Diagrams for part properties. But it's not the only way.
[MODELLING, TIP, TOOL]{INFORMATIVE} The Webel recipe for pragramatic SE with SysML adopts the MagicDraw/Cameo tool friendly approach of using a SystemContext as 'subject' of top-level UseCases (although using a System as 'subject' can also be used).
[CONVENTION, MODELLING, NAMING, TIP]{RECOMMENDED} Webel: SysML: SE: Naming convention: «whitebox»: A '$' prefix indicates a «logical» system, «logical» subsystem (aka conceptual subsystem) or «logical» handler Block (which is a more specific form of «logical» subsystems Block).
[CONVENTION, MODELLING, NAMING, TIP]{RECOMMENDED} Webel: SysML: SE: Stereotype keyword convention: BY DEFINITION HERE «blackbox» and «whitebox» refer specifically to the 'problem' zone and NEVER the 'solution' zone (as opposed to more general uses of the terms 'black-box' and 'white-box').
