Geometry Examples: SimpleQuadcopter.sysml [WIP: ATTEMPTED: Possible sample code inconsistencies]

Gallery
Tutorial
TRAIL: The SysML-v2-Pilot-Implementation GitHub samples in Cameo by Webel
Section
examples
Keywords

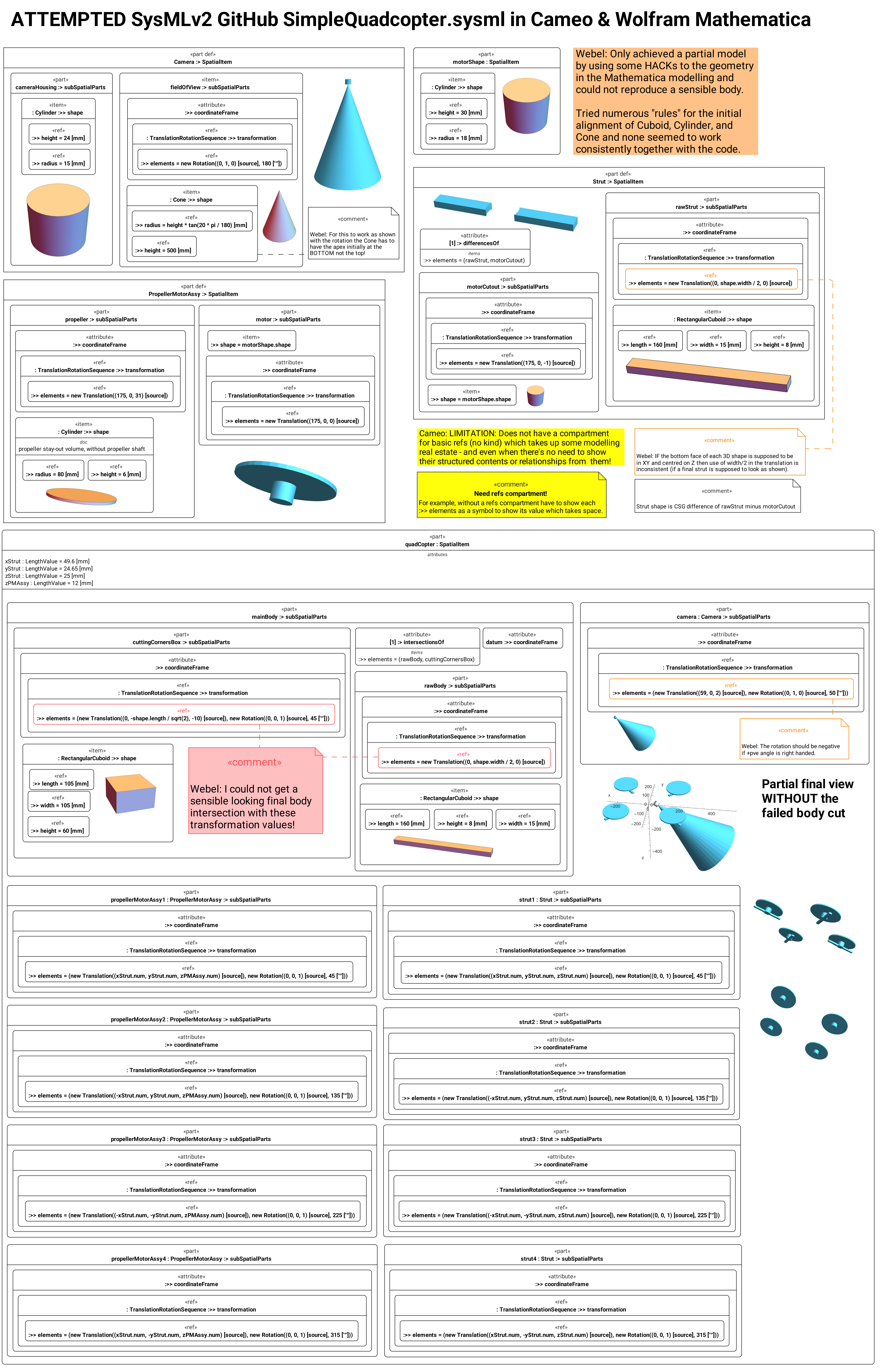

With 3D shapes created using  Wolfram Mathematica
Click on the image to view it full size
Cameo SysMLv2 Plugin: LIMITATION: Does not have a compartment for basic refs (no kind) so one has to use symbols, which takes up some modelling real estate - even when there's no need to show their structured contents or relationships from them!
Dr Darren suggests:
I'm convinced there are numerous errors and inconsistencies in this sample!

I could not in particular get the main QuadCopter body intersection to yield anything sensible, even trying various hacks, and I needed some hacks to get some other elements to look sensible.

Learn about modelling best practices for SysMLv2 in Cameo from Webel!

Course: Model-Based Systems Engineering with OMG Systems Modeling Language® (v2) and the Cameo Systems Modeler (CATIA Magic™) tools for SysMLv2
BIG NEWS: The Webel SysMLv2/MBSE course is now available as a full Online Self-Study Course with built-in self-test Quiz system!
Up next
Individuals Examples: JohnIndividualExample.sysml
Notes
[ISSUE, LIMITATION, MODELLING, TOOL]{INFORMATIVE} Cameo SysMLv2 Plugin: LIMITATION: Does not have a compartment for basic refs (no kind) so one has to use symbols, which takes up some modelling real estate - even when there's no need to show their structured contents or relationships from them!
[MODELLING, TIP, TOOL]{RECOMMENDED} Webel Best Practice: SysMLv2: Cameo: TIP: Show EITHER a specialization relationship from a symbol OR show the specialization in the symbol header using Display Styles -> Show Specialization. Prefer NOT show both modes in one View.
