Cameo: SysML v2 Simulation plugin (2020xR1): To run a part with a state usage it must be an exhibited state

Icon class
icon_class
far fa-sticky-note
icon_class_computed
far fa-sticky-note
Note kind
MODELLING
TIP
TOOL
Policy level
INFORMATIVE
Specification keywords
SysMLv2
SysMLv2 keywords
exhibited state
«exhibit state»
«exhibit»
Keywords
Click on the image to view it full size

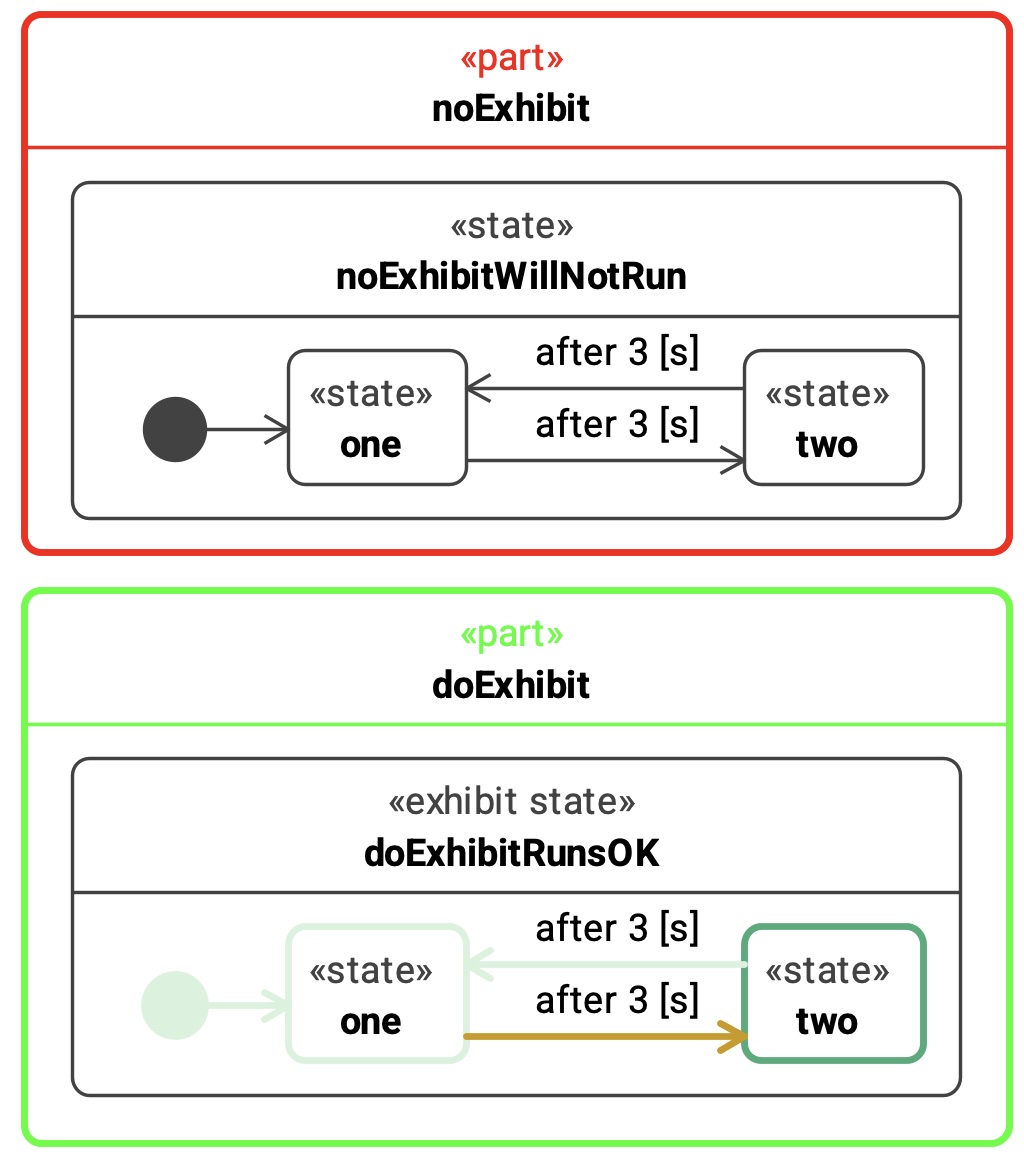

To run a part with a state usage in the Cameo SysMLv2 Simulation plugin it must be an exhibited state.

This is not to say that it is not in general SysMLv2 modelling useful to have other non-exhibited state usages, but in the EXPERIMENTAL Cameo SysMLv2 Simulation 2026x1 technology preview release one can't yet type a state usage by a state definition, or use a subsetted state usage anyway.

Relates to
Related notes
[TOOL]{INFORMATIVE} Cameo: SysML v2 Simulation plugin quick guide for Cameo 2026x Release1 [EXPERIMENTAL]
