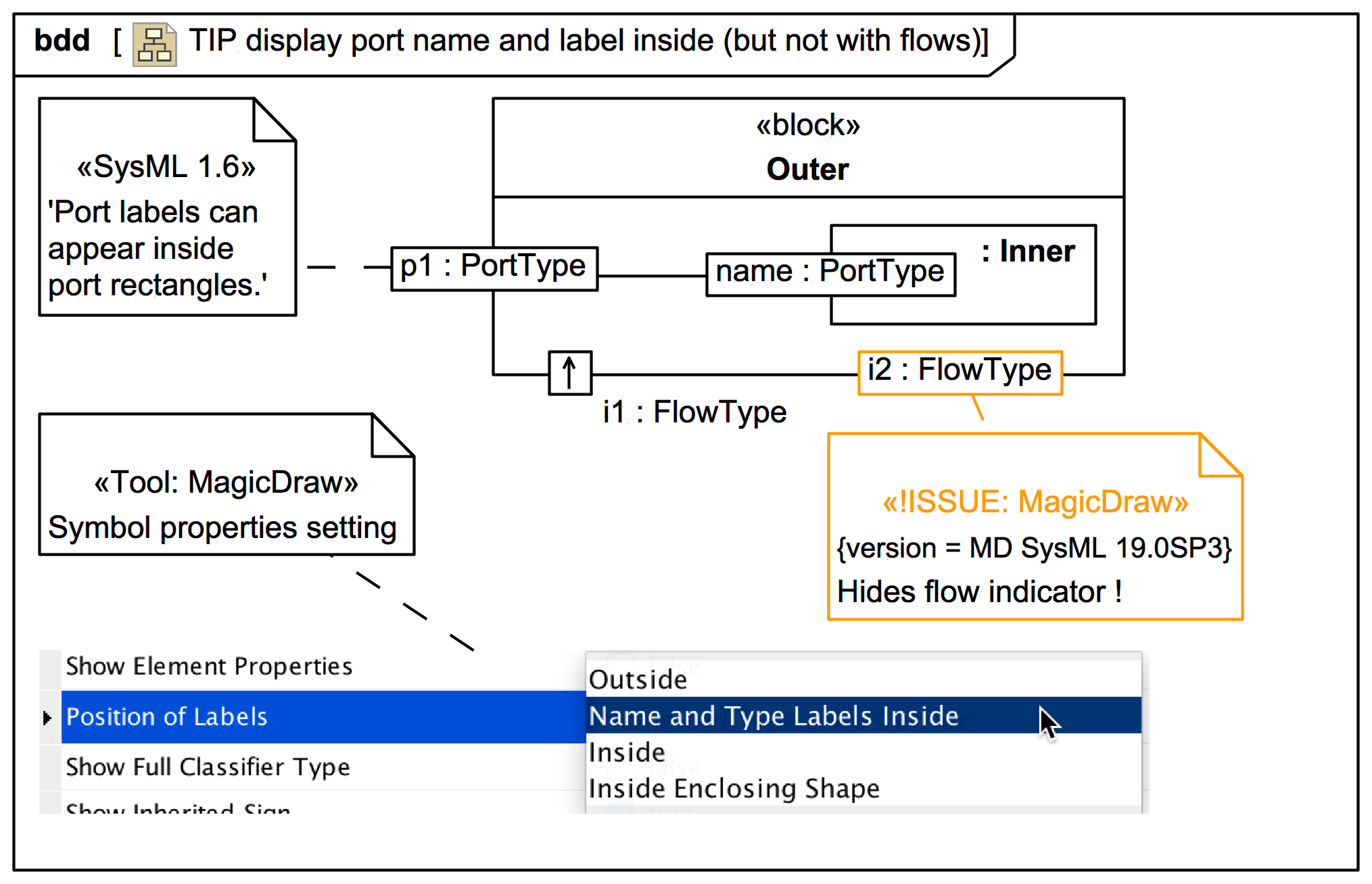

TIP: MagicDraw/Cameo: Consider showing the Port name and type label inside the Port symbol! CAVEAT: This loses the direction indicators on Ports typed by Blocks with flow properties (but is fine if ItemFlows show the direction, or for "contract ports").

Icon class
icon_class
far fa-sticky-note
icon_class_computed
far fa-sticky-note
Note kind
UML keywords
Keywords
Click on the image to view it full size

Increasingly, the Webel examples use the Position of Labels feature to show the Name and Type Labels Inside. It is often much clearer, and can save a lot of time, because you don't have to fiddle with position the labels relative to the Port symbol.

This mode however has the disadvantage that FlowProperty direction indicators can't be seen (so it's best suited to contract ports)
Beware also, if you are using good ol' UML provided/required Interfaces: Related:
