MagicDraw/Cameo: You can drag a Class symbol onto a Class symbol (in a Class Diagram) or a Block symbol or ValueType symbol onto or Block symbol (in a Block Definition Diagram) to create a new part property or value property

Icon class
icon_class
far fa-sticky-note
icon_class_computed
far fa-sticky-note
Note kind
CAPABILITY
FEATURE
TIP
TOOL
Policy level
INFORMATIVE
Specification keywords
SysML-1.6
SysML-1.7
UML-2.5.1
UML keywords
Property
Class
Class Diagram
attributes compartment
AggregationKind
AggregationKind::composite
ActivityPartition
receptions compartment
Signal
symbol
SysMLv1.x keywords
Block
block property
SysML Block Definition Diagram
part property
parts compartment
values compartment
ValueType
value property
Keywords

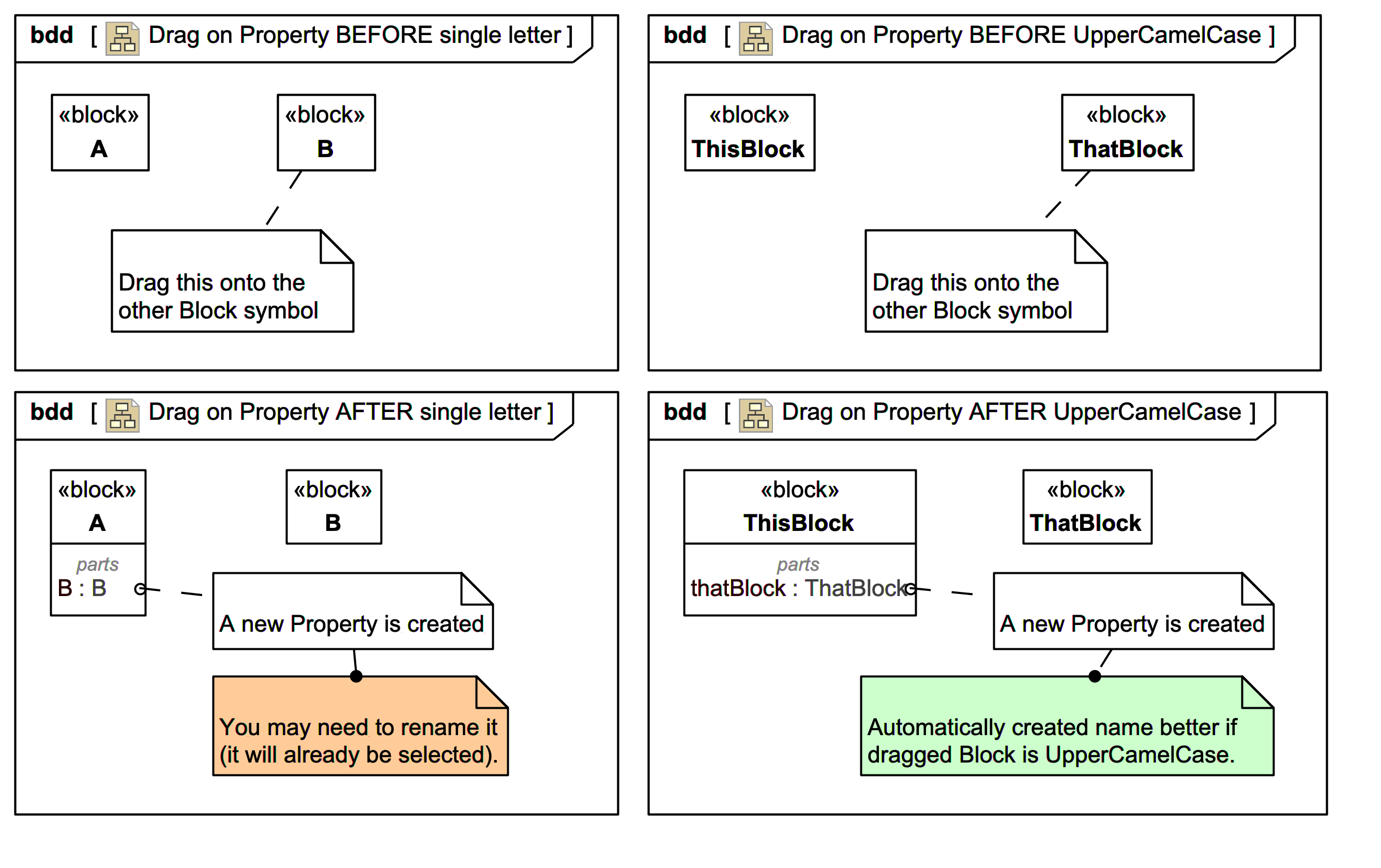

Click on the image to view it full size

This is typically one of the first "modelling power tips" new tool users learn. It works for many classifier types: Class, Block, ValueType, Signal etc. Note that:

- A dragged-on Class or Block will usually create a Property with AggregationKind 'composite' (so it will be considered a 'part').

Unfortunately, at least for MagicDraw/Cameo v19SP3, if the "dragged" Class or Block had a name that was a single letter, the automatically generated name in the tool for the newly created Property (such as B:B in the left of the image) does not meet Webel Best Practice:
MagicDraw/Cameo: v19SP3: Property created by dragging onto a Class or Block a symbol of a Classifier named with a single letter capital name 'N' has a poor name 'N:N'
Webel Best Practice: SysML: Naming: Always use either anonymous or first letter lower case for Property, ObjectNode and InstanceSpecification names; no exceptions (unless using names to "quote text")! Valid: 'lowerCamelCase' OR 'tla' vs TLA acronym OR 'uCC' vs UpperCamelCase
Luckily, the newly created Property will already be selected as a row in the block compartment, so you can easily rename it. In the case shown you might rename it to from B:B to b:B.

The problem only seems to happen when the Classifier has a single letter name, otherwise you get something like block:Block or thatBlock:ThatBlock (with UpperCamelCase, a.k.a. PascalCase).

GOTCHA: If you for some reason can't see the new Property in a compartment on your Class or Block, it may be because under the symbol properties the relevant compartment has suppress selected, so check that first.

- If you drag a Class onto a Class it should appear in the attributes compartment.

- If you drag a Block onto a Block it should appear in the parts compartment.

- If you drag a ValueType onto a Block it should appear in the values compartment.

- If you drag a Signal onto a Class or Block it should appear in the receptions compartment.

If you still can't see the new Property, it may be that you need to adjust this display setting:

MagicDraw/Cameo: If you want to show a Property or Port listed both in its corresponding compartment on a Class or Block symbol and as the end of an Association in the same diagram, set the display option Show Association Ends As Attributes/Ports to 'all'

This "drag-on" feature in a sense works together with this "drag-out" feature:

MagicDraw/Cameo: You can drag out a Property (or Port) from a Class or Block symbol to create an Association with the Property (or Port) as one end
