Webel: SysML: Use concise Package and Model naming to provide "context aware" owner paths that reflect a systems engineering strategy. Extremely so-called "human friendly" verbose Package/Model names with spaces DO NOT make the model easier to understand!

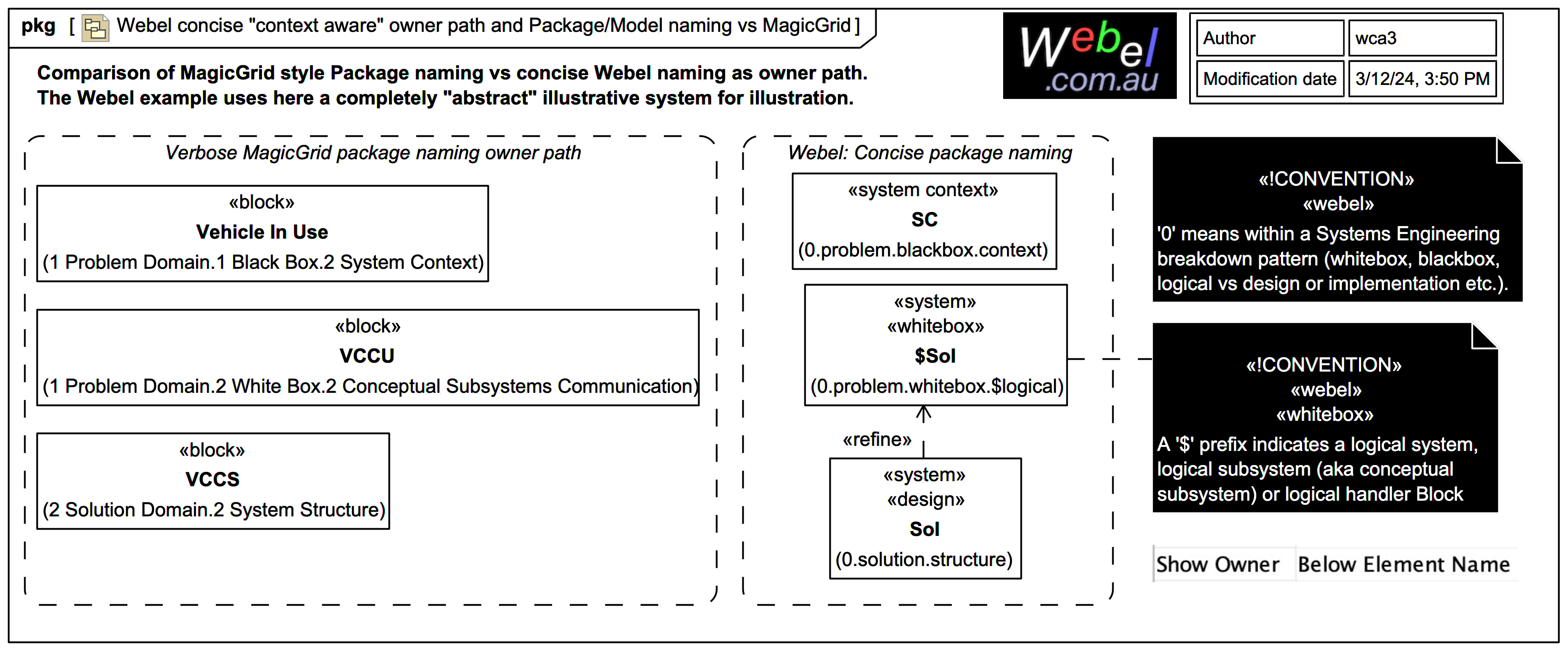

Not to pick on the extremely verbose MagicGrid Package naming ... ok, just a bit, it is rather horribly and unnecessarily verbose. The concise Webel approach communicates massively better, and reflects the underlying systems engineering approach far better too. It also helps leverage DRY not WET.

Visit also:

Webel: SysML: "Really long human friendly element names with spaces make my diagrams easier to read". Dr Darren says "No they don't! Prefer code-like naming (or anonymous for typed elements) wherever possible. Use custom tagged values for other names!"

Webel: SysML: SE: Naming convention: '0' used for a Package/Model name indicates a zone dedicated to a formal systems engineering breakdown (functional analysis, blackbox, whitebox, logical vs design or implementation etc.)

Webel: SysML: SE: Naming convention: «whitebox»: A '$' prefix indicates a «logical» system, «logical» subsystem (aka conceptual subsystem) or «logical» handler Block (which is a more specific form of «logical» subsystems Block).

[STUB] TRAIL: Webel's ultimate guide to simplified yet adequate pragmatic systems engineering with functional analysis in SysMLv1 for smaller scale MBSE projects in the MagicDraw/Cameo/CATIA Magic tools

Relates to

Webel SE: pragmatic tool-friendly functional analysis: 2-level drill-down from a single Use Case via a «scenario» Activity with allocation to «logical» subsystems first then crossing to the «design» Blocks zone.

Related notes
