Webel: SysMLv1: MagicDraw/Cameo: CON: Using anonymous property and/or action names is not ideal for Element Compartment and Note callout displays when Usage level allocation is used. But allocation table and matrix views are better anyway.

This page identifies a possible issue, inconsistency, concern, error, or bug!
One of the ways Webel IT Australia helps promote tools, technologies, and languages is by donating a lot of time identifying, tracking, and reporting potential issues, in order to help vendors and developers improve the tools and technologies. In some cases, we also offer workarounds and advice for users. All issues tracked on our public site are offered most constructively and with sincerest gratitude to the tool vendors and technology developers.
DISCLAIMER: Vendors do not officially endorse issue analysis by Webel IT Australia.
Icon class
far fa-sticky-note
far fa-sticky-note
Note kind
Policy level
Specification keywords
UML keywords
SysMLv1.x keywords
Click on the image to view it full size
The usual Webel Best Practices for SysML recommendation is to use anonymous block properties and anonymous actions where possible:

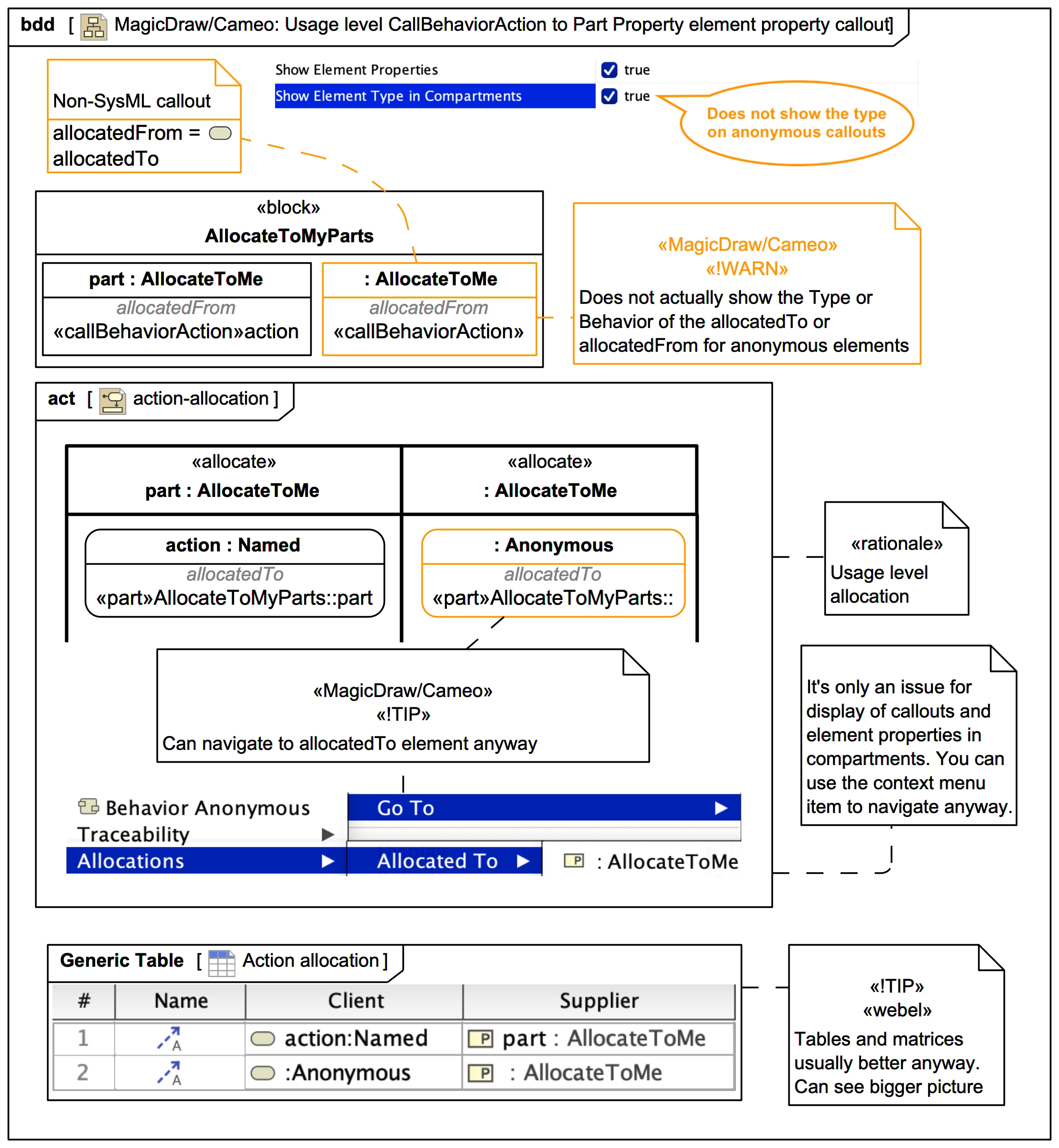

One place this causes a minor display problem in the MagicDraw/Cameo tool is in Element Properties for 'allocateTo' and 'allocatedFrom' in compartments and in callouts to Notes when usage level allocation from CallBehaviorActions to part properties of a Block is being used, in which case it may not be clear which elements are involved in the allocation.

The display option Show Element Type in compartments does not actually show the Type (for allocatedTo) or the Behavior (for allocatedFrom) for anonymous elements for Note callouts or Element Properties compartments

For the sake of comparison, the Element Compartments are using SysML Callout Style and the Note callout is not.

In practice, it's not a big issue, and certainly not sufficient to overrule the benefits of using anonymous actions and anonymous properties (where practical). You can use the context menu items to navigate in the tool. And in any case, Allocate tables and matrices offer a better bigger picture view anyway.
